What is VNA3000
VNA3000 is a portable USB dual-port vector network analyzer. With the professional VNA-PC software, micro-lab, the device is able to measure the frequency range from 1MHz to 3000MHz.What is more important is that the device support dual ports which are both able to measure the S value of S11/S21.
Software: micro-lab
The software, micro-lab,has internal calibrations functions for
open/short/load/thru/isolation.What you need is only to prepare your own calibration kit
accordingly and additionally.It supports the OS for both WINDOWS and LINUX. It is specially
designed for easy understanding and operations.Another important feature is the data output
could be the types of TOUCHSTONE/PDF/PNG/CSV.
Micro-lab
Hardware

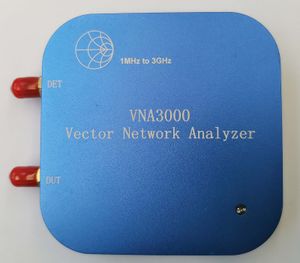

The hardware of VNA3000 is technically designed for industrial standards. The case is specially designed and made of alumini with prise dimentions using CNC tooling machine. With this case, the capability of anti-interference has been improved to a top level. Thanks for the hardware of VNA3000, the consistency and repeatability are in the top level in contrast to competitors' products. The another favorite advantage of hardware of VNA3000 is a real PORTABLE device. The size of the device is only 8*8 *1.7 with the unit of CM.
Technical specifications
- Measure frequency range: 1MHz~3000MHz
- Tuning step:3Hz
- PORTs:two port
- Track noise:<0.1dB
- Dynamic range:60~70dB
- Resistance range:1~1000ohm
- Amplitude accuracy: Amplitude uncertainty < 0.1dB
- Calibration: SOLT (Open/Short/Load/Thru)
- DATA output format: Touchstone/PDF/PNG/CSV
- DATA input format: Touchstone
- OS (for software): Windows, LINUX
- RF Port connector type: SMA
- Power supply: USB
- Size: 8*8 *1.7 in CM
- WEIGHT: 97g
